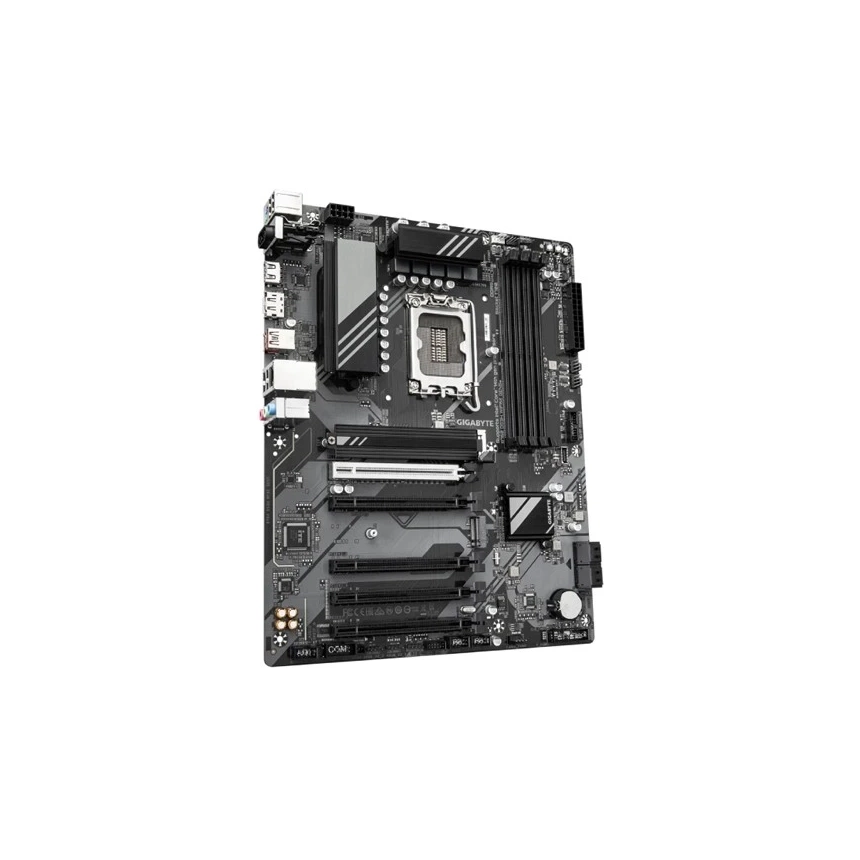

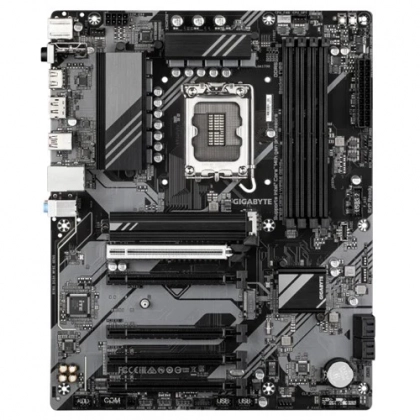

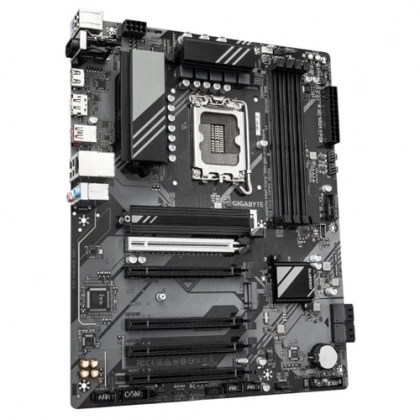

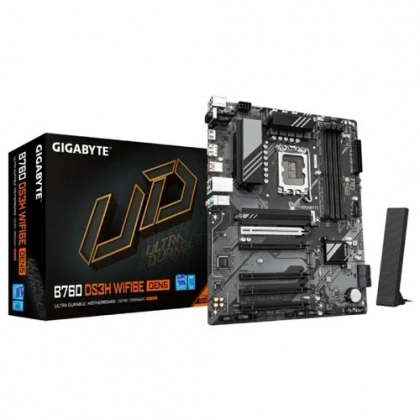

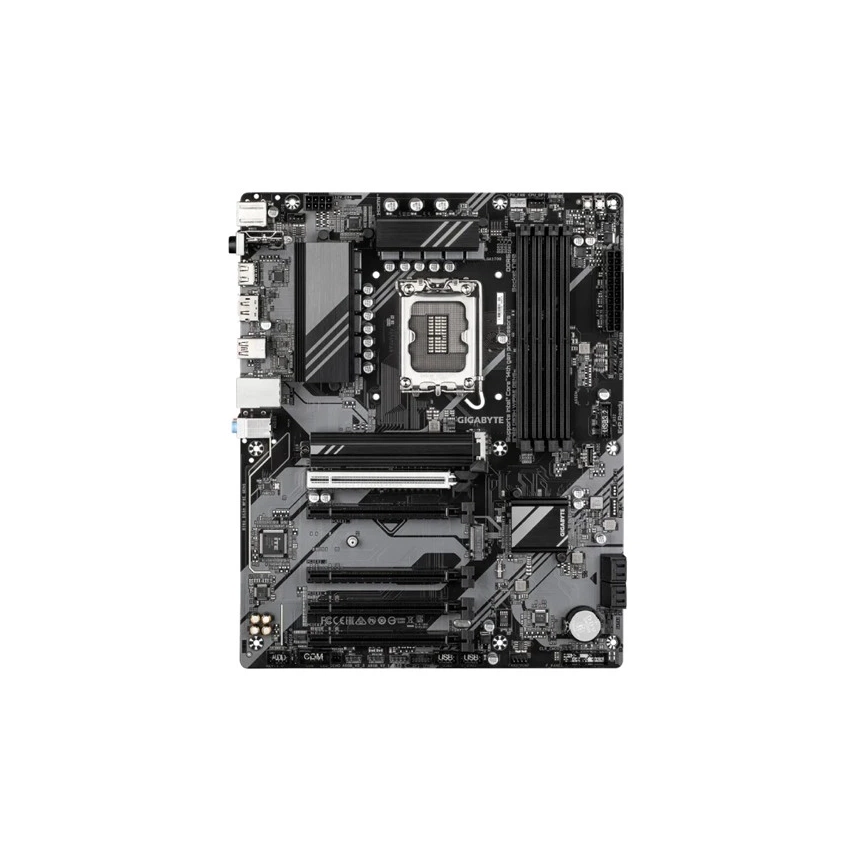

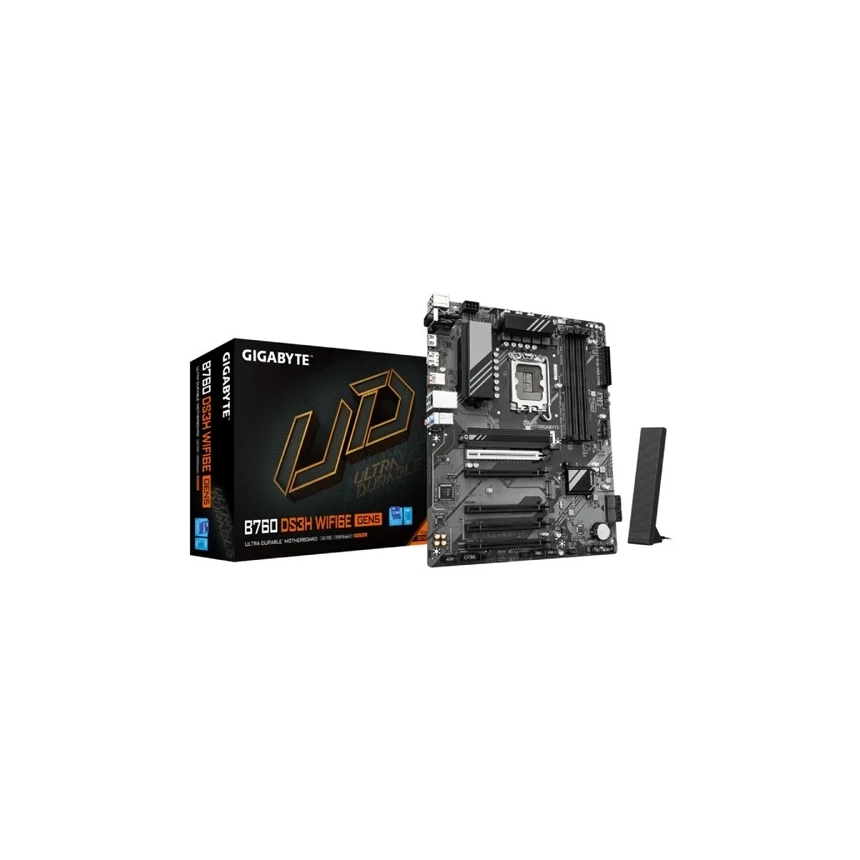

Matična ploča 1700 Gigabyte B760 DS3H WF6E GEN5
Pogledaj kompletnu specifikaciju ovog proizvoda
Cena za odloženo plaćanje: 21.878 RSD
WEB cena: 19.710 RSDUšteda 2.168 RSD
Mesečna rata kredita na 24 rate: 911 RSD
Sigurna kupovina
Uslovi kupovine i informacije o sigurnom i pouzdanom procesu kupovine putem naše platforme.
Pogledaj više
Brza dostava
Dostava proizvoda na adresu kupca!
Pogledaj više
Kupovina na 24 rate
Na 24 rate bez kamate samo uz ličnu kartu!
Pogledaj više
-
+
Dodaj u korpu
Očekivani rok za isporuku je od 1 do 3 dana
Kupovina na rate?
Upišite broj telefona i javiće Vam se neko od naših komercijalista.
| Model | Gigabyte B760 DS3H WIFI6E GEN5 ATX LGA1700 Matična ploča |
| Socket | Intel Socket 1700 (LGA1700) |
| Skup čipova (Chipset) | Intel B760 |
| Podrška za procesore | Intel 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Tip memorije - RAM | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Opis za memorije | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Opis za proširenja | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Ukupno M.2 slotova | 2x M.2 slot |
| SATA portovi | 4x SATA 6Gb/s |
| Brzina LAN porta | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Wi-Fi standard | Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth verzija | 5.3 |
| Zvuk / Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Ukupan broj USB portova | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |

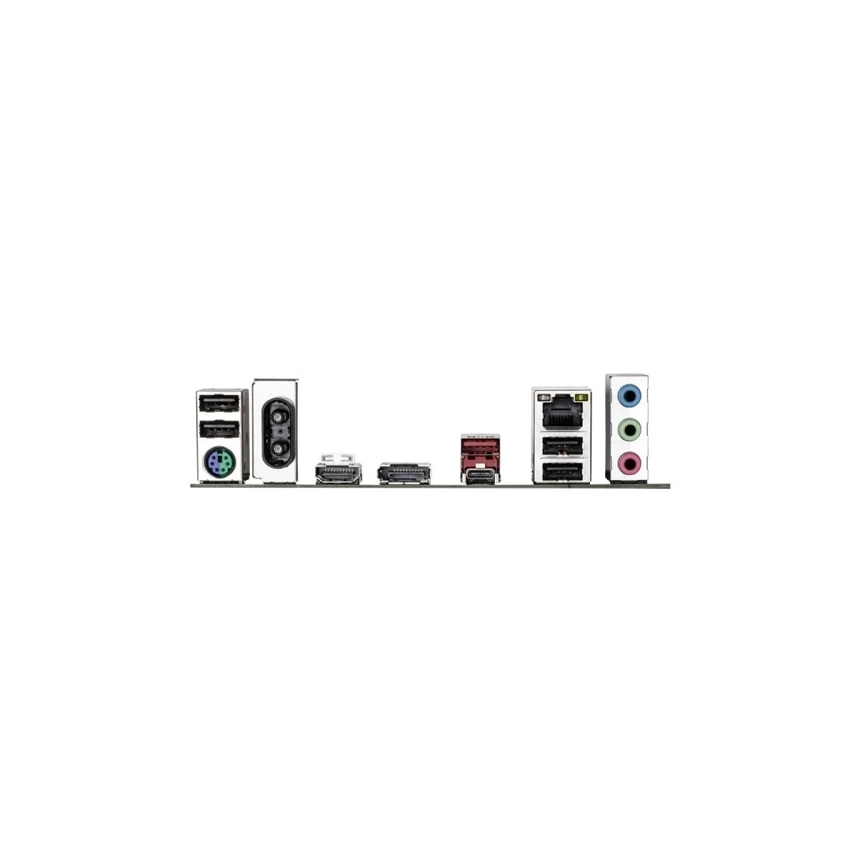

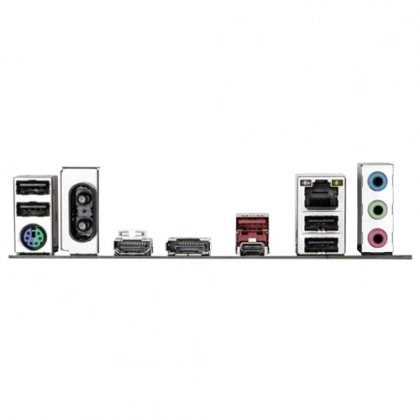

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x RJ-45 port 3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | ATX |
| Prava potrošača: | Zakonska saobraznost 2 godine |
Naziv proizvoda:
Matična ploča 1700 Gigabyte B760 DS3H WF6E GEN5
Vrsta robe:
Matične ploče Intel
Proizvođač:
Gigabyte
Jedinica mere:
1 kom
Tip / Model / Šifra:
MAT001635A00000
Zemlja porekla:
Kina
Uvoznik:
Uspon
Prava potrošača:
Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača.
