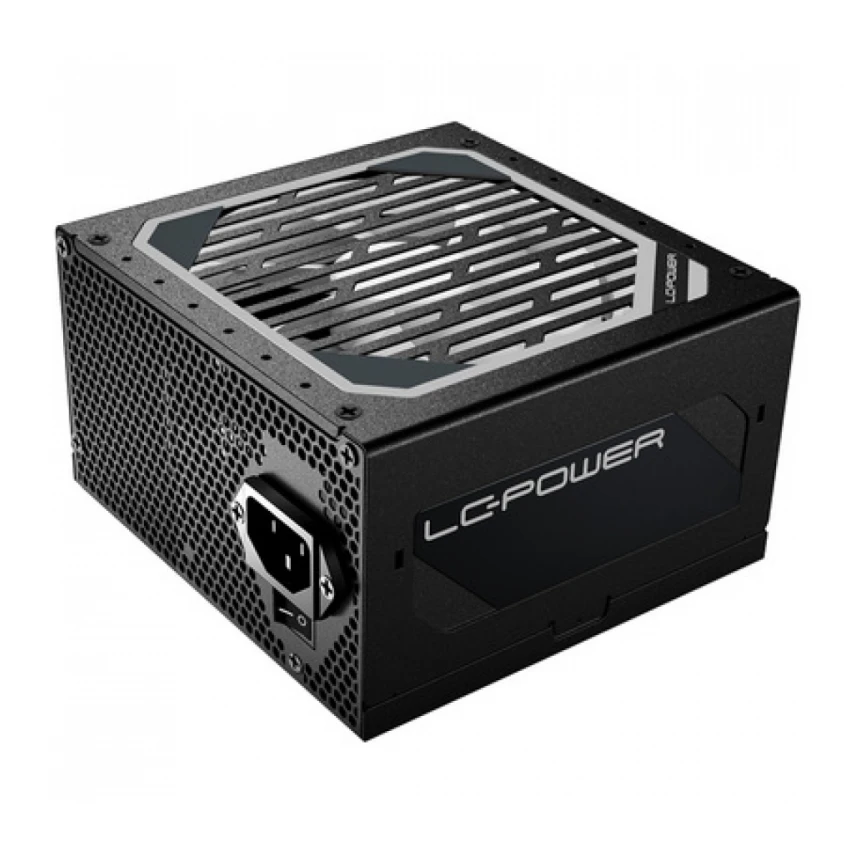

NAPAJANJE ATX LC POWER 650W LC6650 V2.31 80 PLUS BRONZE

Specifikacija

Technical overview
Power supply type Super Silent Series
ATX standard ATX V2.3
Connectors
20+4 pin mainboard 1x 55 cm
4+4 pin mainboard 12V (8 pin EPS) 1x 45 cm
PCI-Express 2x PCI-Express V2.0 6+2-Pin (1x 55/1x 70 cm)
SATA 5 (2x 55/2x 65/1x 75 cm)
PATA 3 (1x 55/1x 65/1x 75 cm)
FDD 1x 55 cm
Mark of conformity CE / TÜV
Fan 120 mm
PFC active
Dimension h x w x d 86 x 150 x 140 mm
Weight (retail) 2,082 kg
max. peak load 650 W
+3,3V 18 A
+5V 18 A
max. combined 100 W
+12V 50 A
max. combined 600 W
Efficiency > 88%
Standby consumption <0,5W - ErP 2013
Temperature control for case fan yes
Security circuitry OVP = Over-Voltage Protection
OCP = Over-Current Protection
OPP = Over-Power Protection
SCP = Short-Circuit Protection
UVP = Under-Voltage Protection
Multirange (110V/220V) no
Haswell compatible yes
Barcode 4260070125638
Manufacturer code LC6650 V2.3
Characteristics:
650W
80 PLUS® BRONZE 230V EU certified
2x PCI-Express V2.0 6+2 pin connector
120mm fan
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
