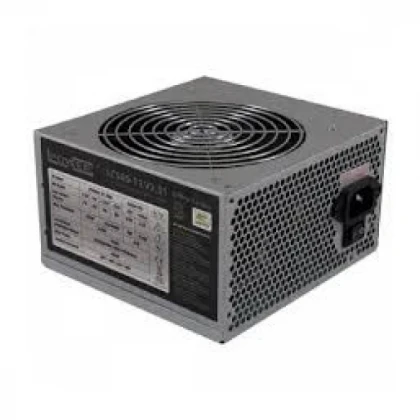

Napajanje 500W LC Power LC500-12 80PLUS Bronze

Specifikacija

Power supply type Office Series
ATX standard ATX V2.31
Connectors
20+4 pin mainboard 1x 45 cm
4+4 pin mainboard 12V 1x 45 cm
PCI-Express 1x PCI-Express 6 pin 45 cm
SATA 4 (2x 45 / 2x 60 cm)
PATA 2x 70 cm
FDD 1x 85 cm
Mark of conformity TÜV, CE
Fan 120 mm
PFC active
Dimension h x w x d 85 x 150 x 140 mm
Weight (retail) 1,378 kg
Power rating 400W max. / peak
+3,3V 21A
+5V 15A
+12V1 11A
+12V2 14A
Efficiency up to 88,63%
Standby consumption 0,21W - ErP 2013
Temperature control for case fan yes
Security circuitry OVP = Over-Voltage Protection
OPP = Over-Power Protection
SCP = Short-Circuit Protection
UVP = Under-Voltage Protection
Multirange (110V/220V) no
Haswell compatible yes
Barcode 4260070124402
Manufacturer code LC500-12 V2.31
Characteristics:
400W max. / peak 80 PLUS® BRONZE 230V EU certified
Efficiency up to 88,63%
Standby consumption: 0,21W
120mm fan
1x PCI-Express 6 pin
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
Garancija 3 godine
