Šifra proizvoda:MAT000096A00000Brend:ASRockKategorija:Matične ploče Intel

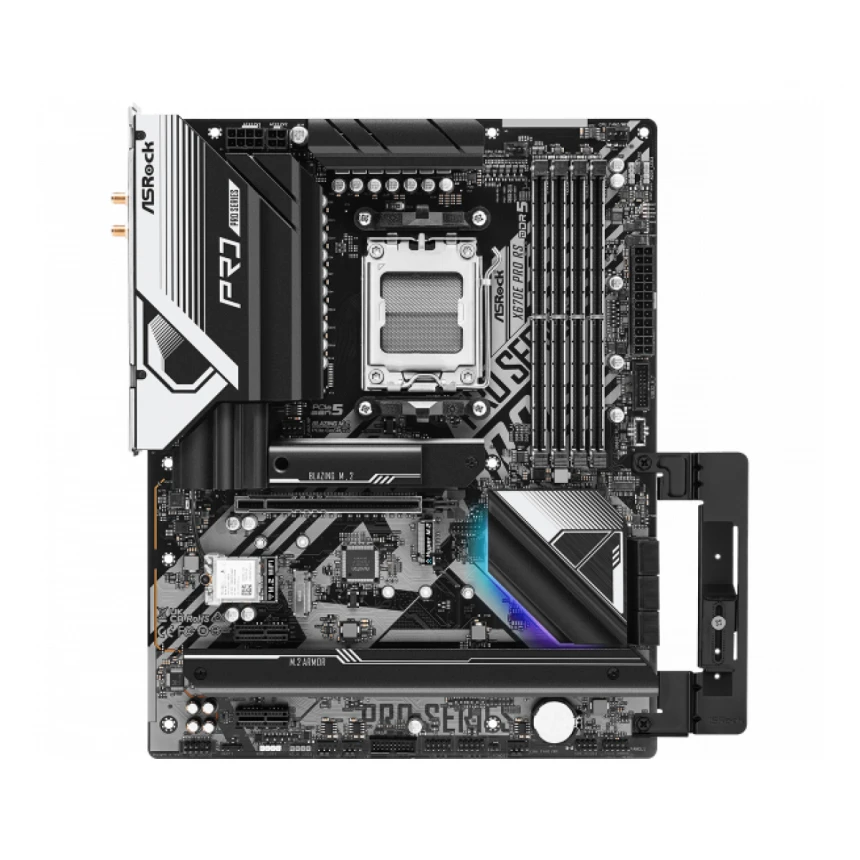

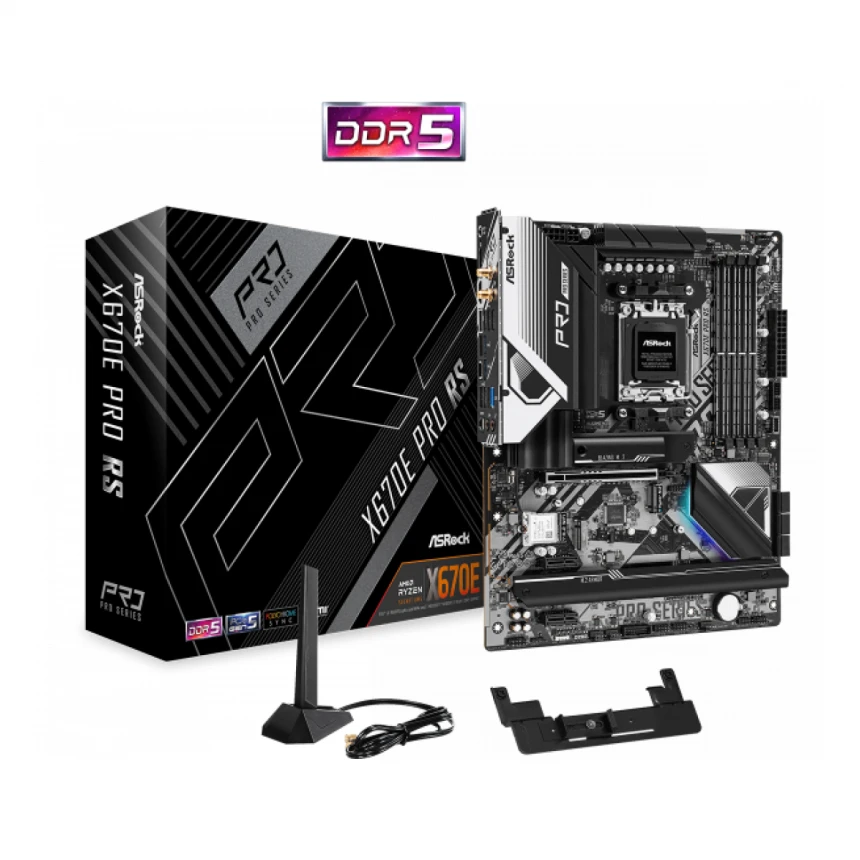

MB AMD AM5 ASRock X670E PRO RS 90-MXBJ7-A0UAYZ

Proizvod nije na stanju

Kupovina na rate?

Upišite broj telefona i javiće Vam se neko od naših komercijalista.

    • CPU
      - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
    • Chipset
      - AMD X670
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 4 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)
      - Max. capacity of system memory: 192GB
      - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    • BIOS
      - 256Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
      - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Dragon 2.5G LAN Software
      - Smart Auto Adjust Bandwidth Control
      - Visual User Friendly UI
      - Visual Network Usage Statistics
      - Optimized Default Setting for Game, Browser, and Streaming Modes
      - User Customized Priority Control



  • Wireless LAN
    - 802.11ax Wi-Fi 6E Module
    - Supports IEEE 802.11a/b/g/n/ac/ax
    - Supports Dual-Band 2x2 with extended 6GHz band support*

    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth 5.2 + High speed class II
    - Supports MU-MIMO

    *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 6 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

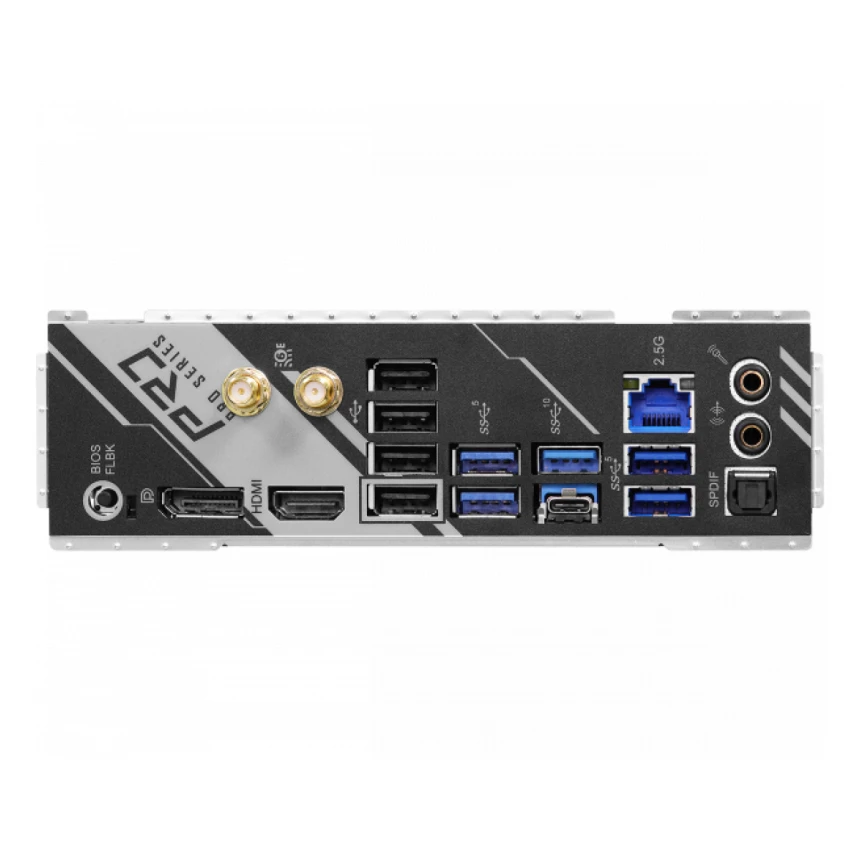

  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
    - 4 x USB 3.2 Gen1 Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)





Hero Banner



Proizvođač

AsRock

Audio Portovi

Audio CODEC ALC897

Wi-Fi

Da

PCI-E X1

x 2

PCI-E X16

x 1

M.2 SLOT

x 5

SATAIII

x 6

HDMI

x 1

USB

11 x USB 3.2

Maksimalni kapacitet memorije

192 GB

RAM slotovi

DDR5 x4

Podržani procesori

AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Integrisani procesor

Ne

LAN

Da

Čipset

AMD X670

Format

ATX

Garancija

Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača

Model

X670E PRO RS

Display port

x 1


Naziv proizvoda:

MB AMD AM5 ASRock X670E PRO RS 90-MXBJ7-A0UAYZ


Vrsta robe:

Matične ploče Intel


Proizvođač:

ASRock


Jedinica mere:

1 kom


Tip / Model / Šifra:

MAT000096A00000


Zemlja porekla:

Kina


Uvoznik:

DS-Computers


Prava potrošača:

Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača.
