MB AM5 GIGABYTE B840 EAGLE WIFI6E rev1.x

Proizvodjac GIGABYTE
Procesorsko ležište AM5
Podržani procesori AMD Ryzen 7000 / 8000 / 9000
Cipset AMD B840
Memorija 4 x DDR5 do 256 GB
Brzine memorije DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
Integrisana grafika AMD Radeon Graphics
Video izlazi HDMI 2.1 / DisplayPort 1.4
Audio Realtek Audio 7.1
LAN Realtek 2.5GbE
Wi-Fi Realtek Wi-Fi 6E RTL8852CE, Bluetooth 5.3
PCIe x16 slot 1 x PCIe x16 CPU (Gen4, zavisi od CPU-a)
Dodatni PCIe slotovi 1 x PCIe x16 (PCIe 3.0 x4) / 2 x PCIe x16 (PCIe 3.0 x1)
M.2 slotovi 3 x M.2
SATA 4 x SATA 6 Gb/s
RAID RAID 0 / 1 / 5 / 10
USB USB-C 3.2 Gen2 / USB 3.2 Gen1 / USB 2.0
Interni konektori 24-pin ATX / 8-pin CPU / CPU Fan / CPU Pump / 3 x System Fan / System Pump / 3 x ARGB / 1 x RGB / 3 x M.2 / 4 x SATA / Front Panel / Front Audio / USB headers / TPM / Reset / Clear CMOS

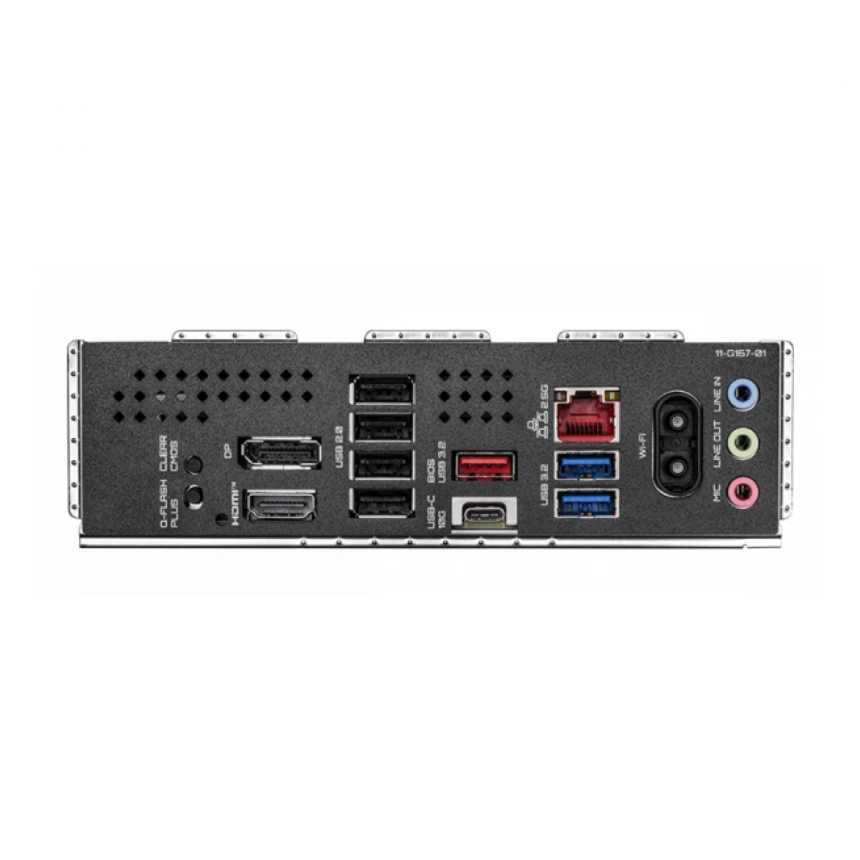

Back Panel HDMI / DisplayPort / USB-C 3.2 Gen2 / USB 3.2 Gen2 Type-A / USB 3.2 Gen1 / USB 2.0 / RJ-45 / Antena / Audio jacks / Q-Flash Plus / Clear CMOS
BIOS AMI UEFI 256 Mbit
Softver GIGABYTE Control Center / Q-Flash / Q-Flash Plus / Smart Backup / Norton Security
Operativni sistemi Windows 11 64-bit / Windows 10 64-bit
Format ATX
Dimenzije 30.5 x 24.4 cm
EAN 4719331876975
Garancija 3 godine
