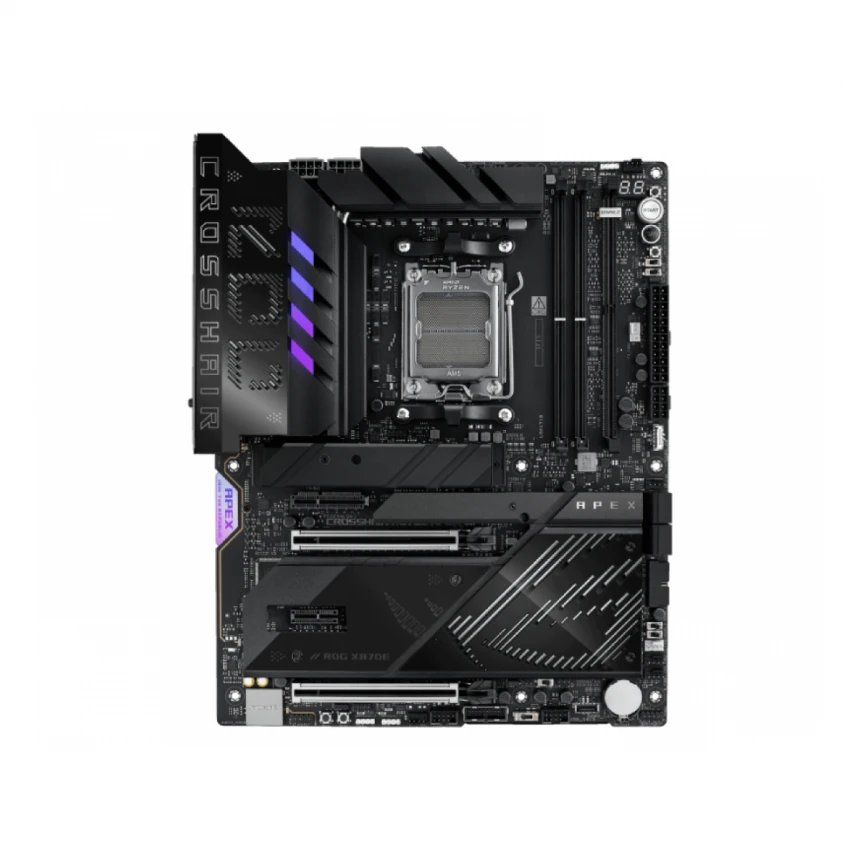

Osnovne karakteristike - Procesorsko ležište (socket): AMD AM5 Čipset: AMD X870E Memorija - Tip memorije: DDR5 Memorijski slotovi: 2x DDR5 Podržane memorije: Podržava DDR5 memorije do 9.600+MT/s (O.C.) Maksimalna ukupna memorija: 128GB Ostale osobine: ASUS Enhanced Memory Profile (AEMP),Dual Channel,Podrška za AMD EXTended Profiles for Overclocking (EXPO),Podrška za ECC UDIMM memory,Podrška za non-ECC UDIMM memory Slotovi - PCI Express x16 slot: 2x PCI Express 5.0 (x16 ili x8/x8 ili x8/x4/x4 modovi) PCI Express x4 slot: 1x PCI Express 4.0 PCI Express x1 slot: 1x PCI Express 3.0 PCI slot: 2,4 Skladišni interfejs - SATA priključci (ukupno): 4 SATA priključci: SATA III 6Gbps Broj M.2 slotova: 5 Podržani M.2 formati: 2x 2230 / 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4 mod),3x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod) RAID: RAID 0,RAID 1,RAID 10,RAID 5 Mreža - Žična mreža (LAN): 1x Realtek 5Gb Ethernet Model: Realtek Wi-Fi: Da Wi-Fi standard: 2.4/5/6GHz frequency band,2x2 Wi-Fi 7 (802.11be) Bluetooth: Da Bluetooth verzija: 5.4 Audio - Broj kanala: 7.1 Model: Realtek ALC4080 Codec Napomena: Audio Cover,Front Panel Jack-retasking,Gold-plated jacks,High quality 120dB SNR stereo playback output and 110dB SNR recording input,Impedance sense for front and rear headphone outputs,Jack-detection,Multi-streaming,Podrška za S/PDIF output,Premium audio capacitors,Savitech SV3H712 AMP,Supports up to 32-Bit/384 kHz playback,SupremeFX Shielding Priključci na zadnjem panelu - DisplayPort priključci: Da preko USB-C PS/2: 1 (tastatura ili miš) Ukupno USB priključaka: 10 Ukupno USB-C priključaka: 3 USB-A priključci: 2x USB 5Gbps (3.2 Gen 1),5x USB 10Gbps (3.2 Gen 2) USB-C priključci: 1x USB 10Gbps (3.2 Gen 2),2x USB 40Gbps (USB 4) RJ-45 (LAN): 1 Audio: 1x S/PDIF optički,2x Gold-plated audio jacks Ostali priključci: 1 x Wi-Fi Module,1x Clear CMOS dugme,1x Realtek 5Gb Ethernet port,BIOS Flashback taster,Clear CMOS button(s) Unutrašnji priključci - Naponski priključci: 1 x 24 pin Main Power connector,1x 8-pin PCIe power connector,2x 8-pin +12V CPU Power connectors USB-A: 2 x podrška za 4 USB 2.0 porta,2 x podrška za 4 USB 5Gbps porta USB-C: 2 x podrška za 2 USB 20Gbps porta Audio: 1x Front panel audio Ostali priključci: 1 x 10-1 pin System Panel header,1 x 4-pin AIO Pump header,1 x 4-pin CPU Fan header,1 x 4-pin CPU OPT Fan header,1 x 4-pin Extra Flow Fan header,1 x 80 Light Bar jumper,1 x FlexKey button,1 x PAUSE Switch,1 x RSVD4 header,1 x SlimSAS connector,1 x Start button,1 x Thermal Sensor header,1 x W_PUMP+ header,12x ProbeIt Measurement Points,1x Alteration PCIe Mode Switch,1x LN2 Mode jumper,2 x 4-pin Chassis Fan headers,2 x 4-pin Full Speed Fan headers,2 x BCLK button,2 x RSVD Switch,3 x Addressable Gen 2 headers,3 x M.2 slot (Key M),3x Addressable Gen 2 headers,4 x SATA 6Gb/s,5 x M.2,BIOS prekidač,ReTry taster,Safe Boot taster,Slow mode prekidač Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu Ostale karakteristike - Podržane tehnologije: Metal backplate,AI Advisor,AI Cooling II,AI Overclocking,AIDA64 Extreme (1 year full version),ASUS CrashFree BIOS 3,ASUS EZ Flash,ASUS UEFI BIOS EZ Mode,AURA Creator,AURA Sync,CPU Socket lever protector,DIGI+VRM,Dolby Atmos,DriverHub,Extreme Engine Digi+,Extreme OC Kit,Fan Xpert 4,FlexKey,GameFirst,GlideX,HWiNFO,M.2 heatsink,M.2 heatsink backplate,M.2 Q-Latch,M.2 Q-Release,M.2 Q-Slide,MyHotkey,PCIe Slot Q-Release Slim,Pre-mounted I/O shield,ProCool II,Q-Antenna,Q-Code,Q-Connector,Q-Dashboard,Q-DIMM,Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]),ROG CPU-Z,SafeDIMM,SafeSlot,TurboV Core,UEFI Bios,USB Wattage Watcher,VRM heatsink design Fizičke karakteristike - Format: ATX Dimenzije: 305mm x 244mm Pakovanje: 1 x ASUS Wi-Fi antena,1 x ASUS WiFi Q-Antenna,1 x M.2 pad for ROG DIMM.2,1 x Q-connector,1 x ROG Bottle Opener,1 x ROG DIMM.2 with heatsink,1 x ROG Memory Fan Kit,1 x ROG stickers,1 x USB drive with utilities and drivers,2 x M.2 screw package for ROG DIMM.2,3 x M.2 Q-Slide package,3 x M.2 rubber package,4 x SATA 6Gb/s kabl Reklamacioni period - Reklamacioni period: 36 meseci
